hydraulic cylinders

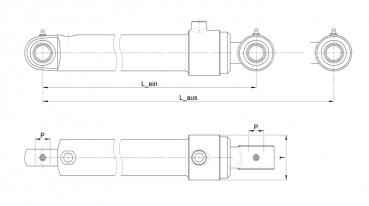

Length of stroke: 300mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø30mm L_ein = 525mm, L_aus = 825mm, P = ø30mm, T = ø90mm

CHF 465.00

Length of stroke: 400mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø30mm L_ein = 625mm, L_aus = 1025mm, P = ø30mm, T = ø90mm

CHF 475.00

Length of stroke: 300mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø40mm L_ein = 525mm, L_aus = 825mm, P = ø30mm, T = ø90mm

CHF 485.00

Length of stroke: 500mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø30mm L_ein = 725mm, L_aus = 1225mm, P = ø30mm, T = ø90mm

CHF 490.00

Length of stroke: 400mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø40mm L_ein = 625mm, L_aus = 1025mm, P = ø30mm, T = ø90mm

CHF 495.00

Length of stroke: 500mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø30mm L_ein = 825mm, L_aus = 1425mm, P = ø30mm, T = ø90mm

CHF 500.00

Length of stroke: 300mm, operation pressure = max. 250 bar Piston = ø63mm, Piston rod = ø40mm L_ein = 725mm, L_aus = 1225mm, P = ø30mm, T = ø90mm

CHF 515.00

Length of stroke: 200mm, operation pressure = max. 250 bar Piston = ø80mm, Piston rod = ø40mm L_ein = 440mm, L_aus = 640mm, P = ø35mm, T = ø105mm

CHF 515.00

33 to 40 (from a total of 65)
