hydraulic cylinders

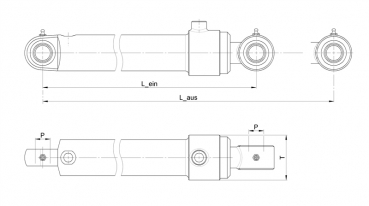

Length of stroke: 200 mm, operation pressure = max. 250 bar Piston = ø40mm, Piston rod = ø25mm L_ein = 385, L_aus = 585, P = ø20mm, T = ø60mm

CHF 330.00

Length of stroke: 250 mm, operation pressure = max. 250 bar Piston = ø40mm, Piston rod = ø25mm L_ein = 435, L_aus = 685, P = ø20mm, T = ø60mm

CHF 360.00

Length of stroke: 300 mm, operation pressure = max. 250 bar Piston = ø40mm, Piston rod = ø25mm L_ein = 485, L_aus = 785, P = ø20mm, T = ø60mm

CHF 360.00

Length of stroke: 50 mm, operation pressure = max. 250 bar Piston = ø50mm, Piston rod = ø25mm L_ein = 255mm, L_aus = 305mm, P = ø25mm, T = ø75mm

CHF 350.00

Length of stroke: 100mm, operation pressure = max. 250 bar Piston = ø50mm, Piston rod = ø25mm L_ein = 305mm, L_aus = 405mm, P = ø25mm, T = ø75mm

CHF 370.00

Length of stroke: 150mm, operation pressure = max. 250 bar Piston = ø50mm, Piston rod = ø25mm L_ein = 355mm, L_aus = 505mm, P = ø25mm, T = ø75mm

CHF 380.00

Length of stroke: 200 mm, operation pressure = max. 250 bar Piston = ø50mm, Piston rod = ø25mm L_ein = 405mm, L_aus = 605mm, P = ø25mm, T = ø75mm

CHF 380.00

Length of stroke: 250mm, operation pressure = max. 250 bar Piston = ø50mm, Piston rod = ø25mm L_ein = 455mm, L_aus = 705mm, P = ø25mm, T = ø75mm

CHF 385.00

17 to 24 (from a total of 65)
