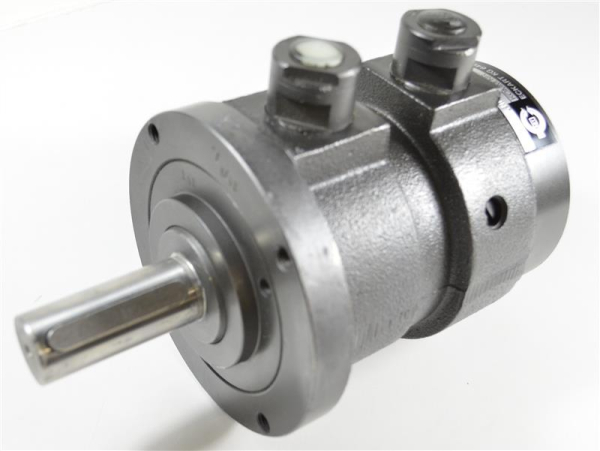

rotary actuator type N.ND25.80-90/Z1/Z2/SO
rotary actuator type N.ND25.80-90/Z1/Z2/SO
rotary actuator type N.ND25.80-90/Z1/Z2/SO

rotary actuator type N.ND25.80-90/Z1/Z2/SO

Product No.:
9956
appr. 3-4 days appr. 3-4 days (abroad may vary)
CHF 100.00

plus 8.1% tax excl. Shipping costs

Add to wish list
Description
execution:
  • with end cushioning
  • with rotation angle adjustment
  • brand Eckart KG
technical data:
  • operating pressure p max. 25 bar
  • working pressure 25 bar
  • torque max. 155 Nm at 25 bar
  • spec. torque 6.2 Nm/bar
  • rotation angle 90°
  • rotation angle adjustment ± 5°
  • displacement 1.48 ccm/1°
  • temperature range -25°C ... +70°C
  • flange Ø125 mm
  • centering flange Ø65h7
  • shaft Ø25k6, with 2 key width 8mm
  • fastening screw thread 4 pieces M8 (pitch diameter Ø113 mm)
  • hydraulic connection 2 pieces G3/8"
  • dimensions (LxWxH) 219x125x145 mm
without guarantee
