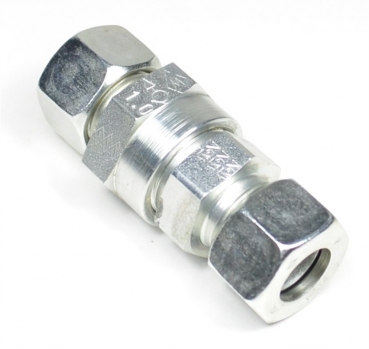

non-return valve type P-RV 12L
non-return valve type P-RV 12L
  • for tube connection ø12L (light series)
  • nominal pressure up to 400bar
  • opening pressure 1bar
CHF 30.10
plus 8.1% tax excl. Shipping costs

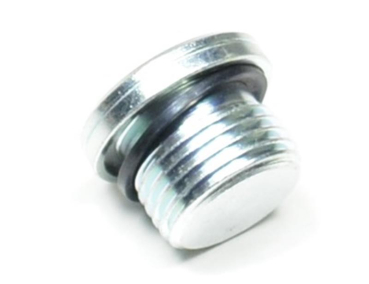

blanking end type VS-R 3/8-WD
blanking end type VS-R 3/8-WD
  • connection thread G3/8", captive seal NBR
  • nominal pressure up to 400bar
CHF 2.50
plus 8.1% tax excl. Shipping costs

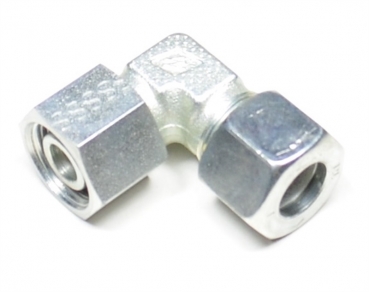

adjustable male stud elbow type P-EWVD 10L
adjustable male stud elbow type P-EWVD 10L
  • for tube fitting size ø10L (light series)
  • with taper 24° and o-ring NBR
  • for tube connection ø10L (light series)
  • nominal pressure up to 500bar
CHF 8.25
plus 8.1% tax excl. Shipping costs

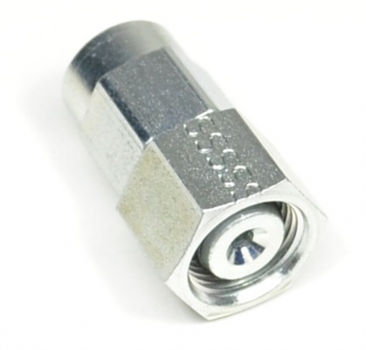

adjustable gauge coupling type EMASD 10LR
adjustable gauge coupling type EMASD 10LR
  • for tube fitting size ø10L (light series)
  • with taper 24° and o-ring NBR
  • for gauge connection thread G1/4", seal ring included
  • nominal pressure up to 500bar
CHF 7.00
plus 8.1% tax excl. Shipping costs

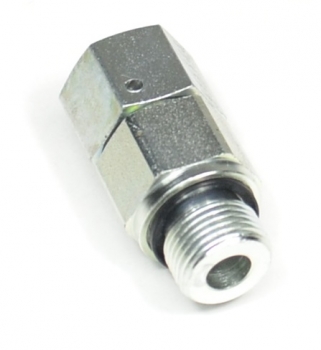

stud standpipe adaptor type EGESD 12L/R 1/4-WD
stud standpipe adaptor type EGESD 12L/R 1/4-WD
  • for tube fitting size ø12L (light series)
  • with taper 24° and o-ring NBR
  • connection thread G1/4", captive seal NBR
  • nominal pressure up to 400bar
CHF 7.30
plus 8.1% tax excl. Shipping costs

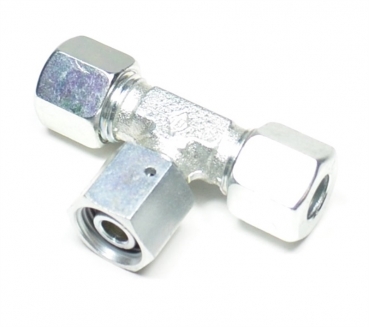

adjustable equal tee type P-ETVD 12L
adjustable equal tee type P-ETVD 12L
  • for tube fitting size ø12L (light series)
  • with taper 24° and o-ring NBR
  • for tube connection ø12L (light series)
  • nominal pressure up to 400bar
CHF 14.80
plus 8.1% tax excl. Shipping costs

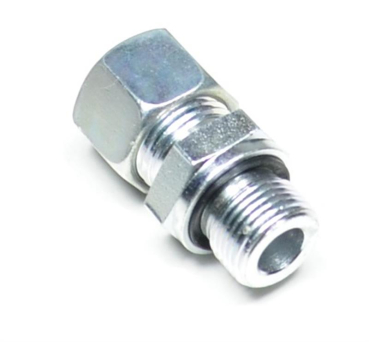

male stud coupling type P-GEV 10LR-WD
male stud coupling type P-GEV 10LR-WD
  • for tube connection ø10L (light series)
  • connection thread G1/4", captive seal NBR
  • nominal pressure up to 500bar
CHF 3.00
plus 8.1% tax excl. Shipping costs
male stud coupling type P-GEV 12LR-WD
male stud coupling type P-GEV 12LR-WD
  • for tube connection ø12L (light series)
  • connection thread G3/8", captive seal NBR
  • nominal pressure up to 400bar
CHF 3.65
plus 8.1% tax excl. Shipping costs
1 to 8 (from a total of 229)
